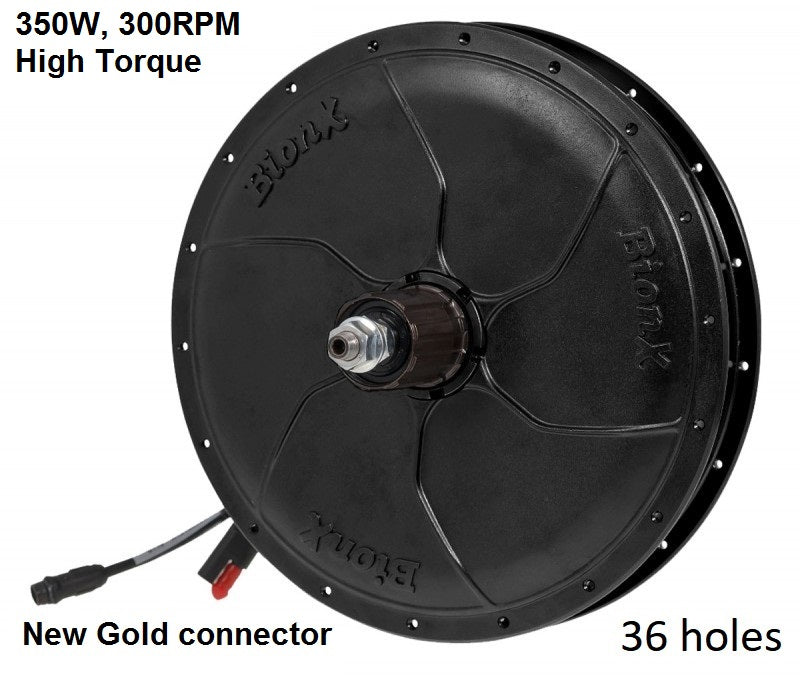

BionX P-Series motor - 350W, 300RPM, Cassette, 36 Spokes, New Gold Connector, 01-5985

$999.00
$699.99

P-Series High Torque motor, 01-5985;
Same as the 01-5989, but with 36 holes covers.

  • High torque;  Best for cities, most climbs
  • Nominal torque; 10Nm, Maximum torque; 40Nm
  • 350Watts nominal, 1500W peak power.
  • 300 RPM Stator; For 24” up to 29” Rims
  • Weight – 4.7kg
  • 36 spokes holes.
  • For cassette installation; 7, 8, 9, 10, and select 11 speed compatible.
  • 6 bolt disc brake compatible
  • Standard axle length; 135mm O.L.D. (Over-Locknut Dimension)
  • Use the latest gold plated power connector.
  • 27deg TRC torque blocker included, (part 01-3656)
  • Black
  • Production date; January 2018.

 Important information to know when buying/installing BionX motors.

* Motor only, No spokes, no rim, no washers, no cassette.
* 27degres TRC (torque reaction collar) + 2 nuts included.
* To be used with the latest gold plated Power Connector
.

When ordering a motor, please specify if it's going to be used with a G2 or RC3 controller and also the planned wheel diameter, maximum speed. We will pre-program the according firmware and set parameters. By default, we ship motors for G2 controller usage and with a 700c wheel diameter.
